Pièces détachées aspiro-souffleur thermique Makita BBX7600

En stockPièce d'origine

Marque : Makita

Pièces détachées aspiro-souffleur thermique Makita BBX7600

Vérifier la compatibilité

Votre référence machine se trouve sur la carcasse ou la plaque signalétique.

Envoyez-nous une photo de la plaque signalétique : nous vous transmettons la vue éclatée exacte de votre machine et la référence de la pièce.

Envoyer ma plaque par e-mail

Réponse sous 2 h ouvrées.

€229,90 Disponible — expédié aujourd'hui

Devis

Pièces de la vue éclatée

250 positions

Pos. Description

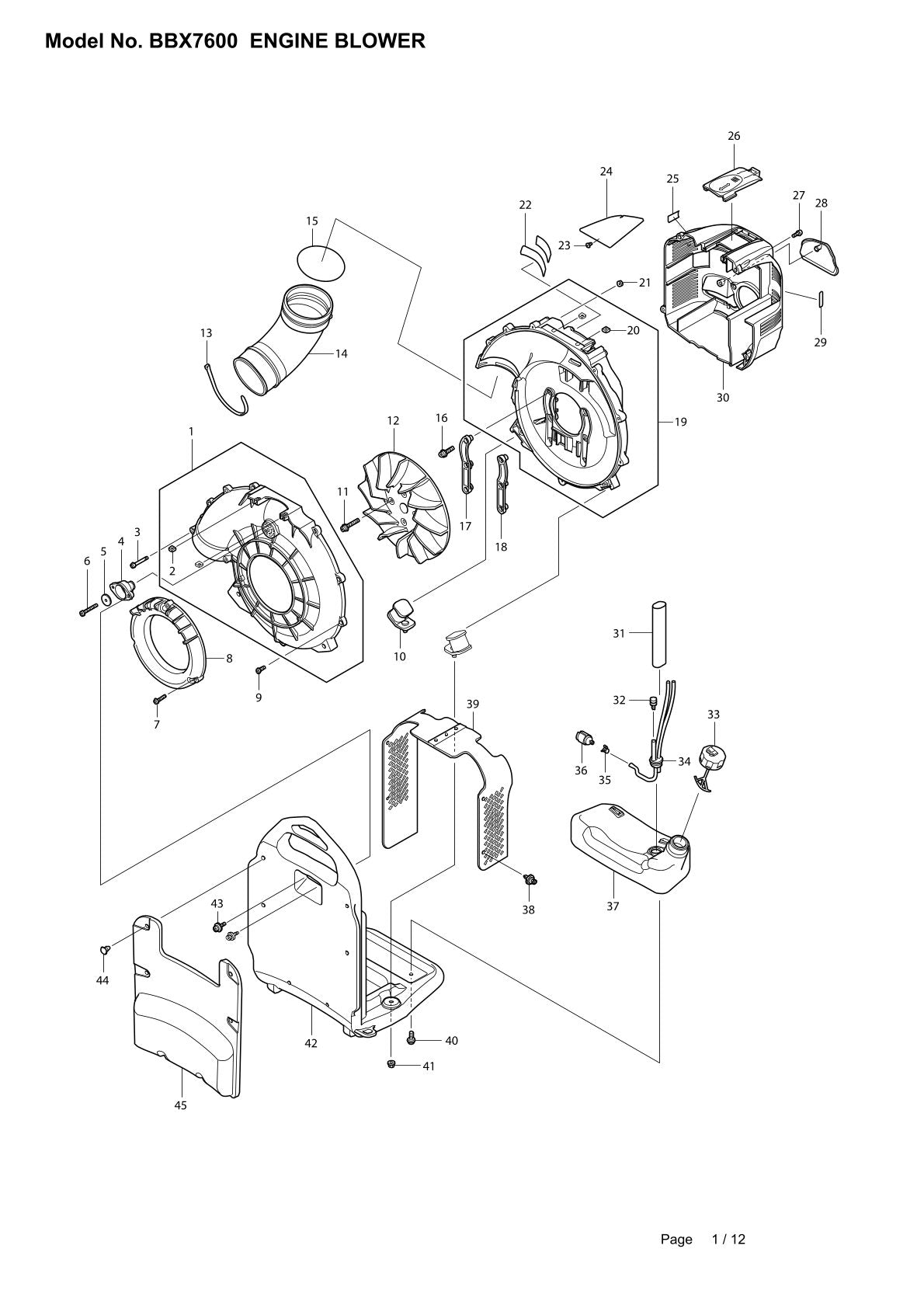

Position 001-1 Ref 6671007001 - VOLUTE CASE 1 ASSY €229,90

Position 002 Ref 6671005010 - SQUARE NUT €8,90

Position 002-1 Ref 6671005011 - SQUARE NUT €29,90

Position 003 Ref 0140059220 - SCREW ASSY M5X65 (W.SW) €10,90

Position 004 Ref 6671002000 - DAMPER 1 COMPL €94,90

Position 005 Ref 0200059910 - WASHER M5 €8,90

Position 006 Ref 0043105400 - PAN HEAD SCREW M5X40 €8,90

Position 007 Ref 0150059730 - TAPPING SCREW 5X25 €10,90

Position 008 Ref 6671001000 - INLET COVER COMPL €39,90

Position 009-1 Ref 0150059800 - TAPPING SCREW M5X18 €8,90

Position 010 Ref 6671003000 - DAMPER 2 COMPL €39,90

Position 011 Ref 0119069690 - SOCKET HEAD BOLT M6X40 (W.SW) €14,90

Position 011-1 Ref 0119069691 - SOCKET HEAD BOLT M6X40 (W.SW) €8,90

Position 012-1 Ref 240138-1 - IMPELLER €79,90

Position 013 Ref 0563379990 - WIRE BAND €8,90

Position 014 Ref 6671500400 - ELBOW €94,90

Position 015 Ref 0240989990 - O RING €8,90

Position 015-1 Ref 213645-7 - O RING 93 €19,90

Position 016-1 Ref 266649-8 - SOCKET HEAD BOLT M6X30 €8,90

Position 017 Ref 6671500200 - BASE 1 €24,90

Position 017-1 Ref 318890-0 - BASE L €8,90

Position 018 Ref 6671500300 - BASE 2 €24,90

Position 018-1 Ref 318891-8 - BASE R €8,90

Position 019-2 Ref 6671008002 - CASE 2 VOLUTE ASSY €8,90

Position 019-3 Ref 6671008003 - CASE 2 VOLUTE ASSY €119,90

Position 020 Ref 6671005010 - SQUARE NUT €8,90

Position 020-1 Ref 6671005011 - SQUARE NUT €29,90

Position 021 Ref 0170059950 - NUT M5 €8,90

Position 021-1 Ref 931202-6 - HEX. NUT M5 €8,90

Position 022-1 Ref 892460-8 - CAUTION LABEL €14,90

Position 025 Ref 0736309870 - LABEL €8,90

Position 025-1 Ref 898343-0 - CAUTION LABEL €8,90

Position 026-1 Ref 450964-2 - PLUG COVER €14,90

Position 027-1 Ref 0150059800 - TAPPING SCREW M5X18 €8,90

Position 028 Ref 6676500100 - OIL GUARD €8,90

Position 028-1 Ref 424504-2 - OIL GUARD €24,90

Position 029-1 Ref 898454-1 - CHOKE LABEL €14,90

Position 030-4 Ref 453712-8 - ENGINE COVER €8,90

Position 030-5 Ref 141521-4 - ENGINE COVER COMPLETE €64,90

Position 031-1 Ref 412119-7 - TUBE GUARD 20-160 €14,90

Position 032-1 Ref 168396-6 - BREATHER €24,90

Position 033-1 Ref 125472-9 - FUEL TANK CAP ASSEMBLY €8,90

Position 034 Ref 0851339960 - TUBE 1 Model No. BBX7600 ENGINE BLOWER Page 2 / 7 Please order the parts with a part number. Print Date 04/06/2015 Item Parts No. Description I/C Qty N/O Opt. 1 Opt. 2 Note €8,90

Position 035-1 Ref 345920-4 - HOSE CLAMP €8,90

Position 036 Ref 5806502900 - FILTER €8,90

Position 036-1 Ref 163532-9 - FILTER €59,90

Position 037-1 Ref 453618-0 - FUEL TANK €69,90

Position 038 Ref 6672500300 - ROCK RIVET €8,90

Position 039 Ref 6672002000 - GUARD COMPL €49,90

Position 040 Ref 0043706120 - SCREW ASSY M6X12 (W.SW) €8,90

Position 041 Ref 0023706000 - FLANGE NUT M6 €8,90

Position 041-1 Ref 264092-5 - FLANGE NUT M6 €8,90

Position 042 Ref 6672001000 - FRAME COMPL €129,90

Position 043 Ref 0140059210 - SCREW ASSY M5X16 (W.SW) €8,90

Position 044 Ref 6672500200 - ROCK RIVET €19,90

Position 045-1 Ref 6672003000 - CUSHION COMPLETE €49,90

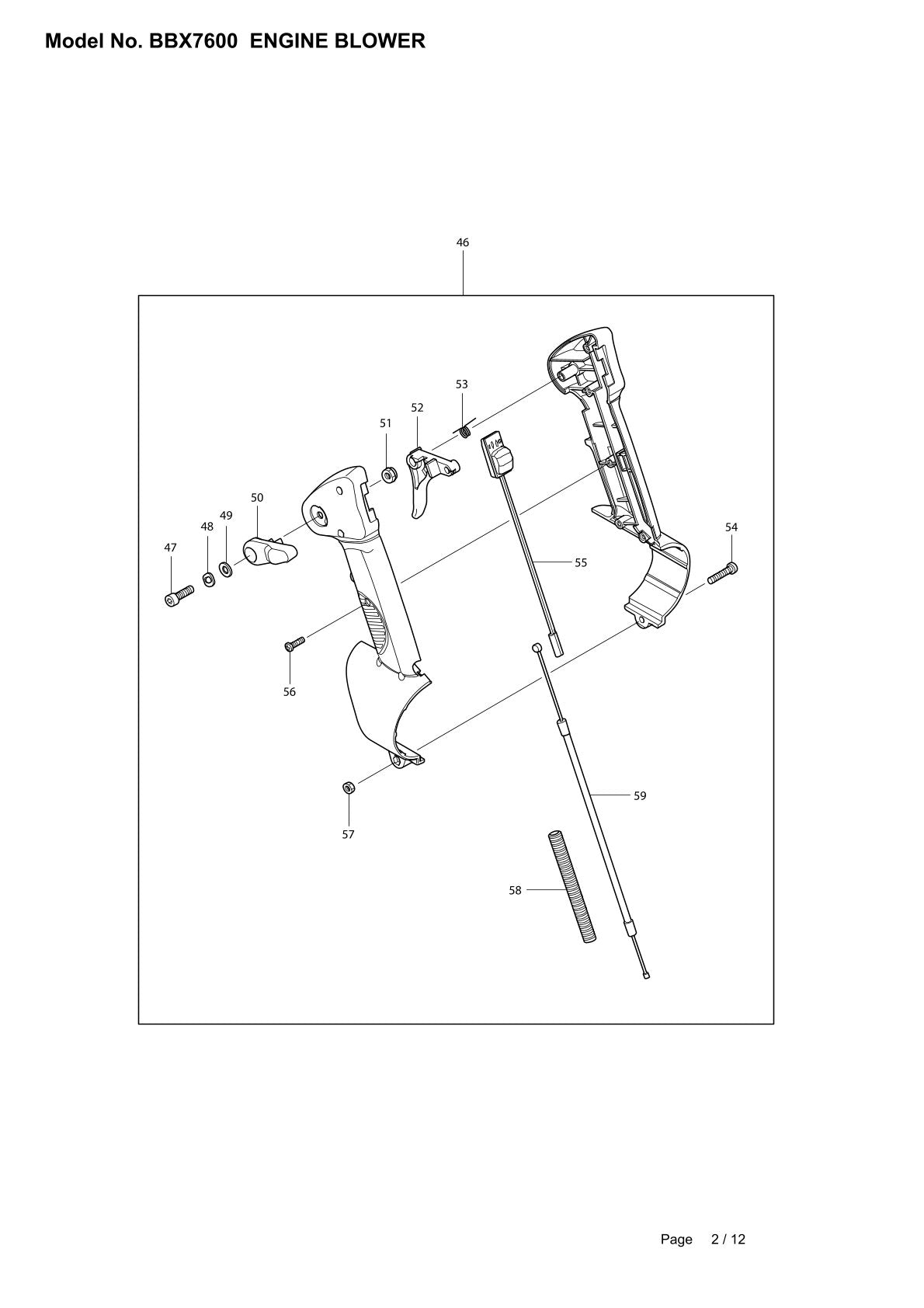

Position 046-1 Ref 6675001002 - CONTROL LEVER ASSY €8,90

Position 046-2 Ref 126137-6 - CONTROL LEVER ASSEMBLY €8,90

Position 046-3 Ref 197095-3 - CONTROL LEVER SET €8,90

Position 047 Ref 6675001010 - SOCKET HEAD BOLT M6X20 €10,90

Position 047-1 Ref 922317-0 - HEX. SOCKET HEAD BOLT M6X14 €8,90

Position 048 Ref 0032206000 - WAVE WASHER €8,90

Position 048-1 Ref 267841-9 - WAVE WASHER 7 €14,90

Position 049 Ref 0031106000 - WASHER €10,90

Position 049-1 Ref 267459-6 - FLAT WASHER 7 €8,90

Position 050 Ref 6625500701 - THROTTLE LEVER 2 €8,90

Position 050-1 Ref 453717-8 - LEVER 2 THROTTLE €109,90

Position 051 Ref 0170069960 - NUT €8,90

Position 051-1 Ref 931302-2 - HEX. NUT M6 €8,90

Position 052 Ref 6625500601 - THROTTLE LEVER 1 €8,90

Position 052-1 Ref 453716-0 - LEVER 1 THROTTLE €49,90

Position 053 Ref 6625500901 - TORSION SPRING €8,90

Position 053-1 Ref 233602-9 - TORSION SPRING 9 €14,90

Position 054 Ref 6675001030 - SCREW M5X25 €8,90

Position 054-1 Ref 911242-0 - PAN HEAD SCREW M5X25 €10,90

Position 055 Ref 6675004000 - SWITCH COMPL €8,90

Position 055-1 Ref 168745-7 - SWITCH COMPLETE €39,90

Position 056 Ref 6675001020 - TAPPING SCREW 4X16 €8,90

Position 056-1 Ref 266768-0 - TAPPING SCREW 4X16 €34,90

Position 057 Ref 0170059950 - NUT M5 €8,90

Position 057-1 Ref 931202-6 - HEX. NUT M5 €8,90

Position 057-2 Ref 252103-8 - HEX. LOCK NUT M5-8 €10,90

Position 058 Ref 6675500001 - CABLE TUBE €8,90

Position 058-1 Ref 453715-2 - TUBE CABLE €49,90

Position 059 Ref 0630139820 - CONTROL CABLE €8,90

Position 059-1 Ref 168744-9 - CONTROL CABLE €39,90

Position 060-2 Ref 266789-2 - H.S.H.BOLT M5X30 WITH WR €8,90

Position 060-3 Ref 922253-0 - H.S.H.BOLT M5X30 WITH WR O 2 Model No. BBX7600 ENGINE BLOWER Page 3 / 7 Please order the parts with a part number. Print Date 04/06/2015 Item Parts No. Description I/C Qty N/O Opt. 1 Opt. 2 Note €8,90

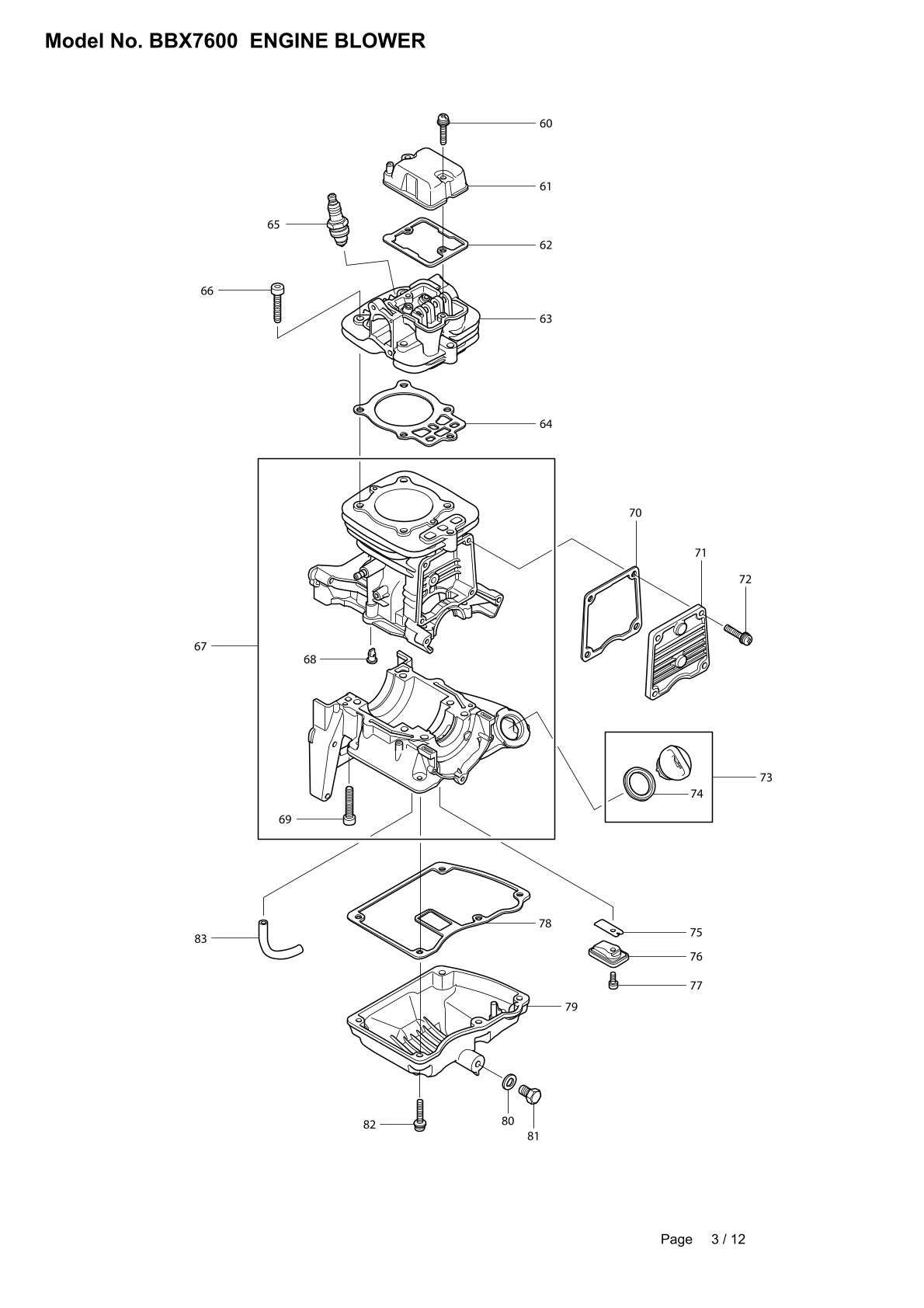

Position 061-2 Ref 141771-1 - ROCKER COVER COMPLETE €8,90

Position 062-1 Ref 5971500900 - ROCKER COVER GASKET €14,90

Position 063-1 Ref 5971003002 - CYLINDER HEAD COMPL €8,90

Position 063-2 Ref 142381-7 - CYLINDER HEAD COMPLETE €8,90

Position 063-3 Ref 142771-4 - CYLINDER HEAD COMPLETE €8,90

Position C10 Ref 313283-6 - VALVE GUIDE €8,90

Position C20 Ref 424424-0 - VALVE STEM SEAL €8,90

Position 064-2 Ref 442167-2 - CYLINDER HEAD GASKET €19,90

Position 065-1 Ref 168401-9 - SPARK PLUG €54,90

Position 066 Ref 0119069670 - SOCKET HEAD BOLT M6X35 €10,90

Position 066-1 Ref 922357-8 - HEX. SOCKET HEAD BOLT M6X35 €8,90

Position 067-1 Ref 5971007001 - CYLINDER BLOCK SET €8,90

Position 068-1 Ref 424201-0 - CHECK VALVE €14,90

Position 069 Ref 0119069930 - HEX. SOCKET HEAD BOLT M6X30 €10,90

Position 069-1 Ref 922352-8 - HEX. SOCKET HEAD BOLT M6X30 €8,90

Position 070-2 Ref 442168-0 - CAM GEAR GASKET €19,90

Position 071-1 Ref 318725-5 - CAM GEAR COVER €24,90

Position 072-2 Ref 266813-1 - H.S.H.BOLT M5X16 WITH WR €8,90

Position 073 Ref 6676005000 - OIL CAP ASSY €29,90

Position 074 Ref 0213229980 - GASKET €79,90

Position 075-1 Ref 346083-9 - LEAD VALVE €14,90

Position 076 Ref 5931501300 - RETAINER PLATE €19,90

Position 077 Ref 0119049980 - SOCKET HEAD BOLT M4X10 €8,90

Position 078 Ref 5976500100 - OIL CASE GASKET €24,90

Position 079 Ref 5976500000 - OIL CASE €49,90

Position 079-1 Ref 319008-6 - OIL CASE €39,90

Position 080 Ref 0037008000 - ALUMINUM GASKET €8,90

Position 080-1 Ref 346452-4 - GASKET €8,90

Position 081 Ref 0016608120 - BOLT M8X12 €10,90

Position 081-1 Ref 266916-1 - HEX. BOLT M8X12 €8,90

Position 082-1 Ref 0119059390 - SOCKET HEAD BOLT M5X25 €8,90

Position 082-2 Ref 922243-3 - HEX. SOCKET HEAD BOLT M5X25 €8,90

Position 083 Ref 0851109960 - TUBE €8,90

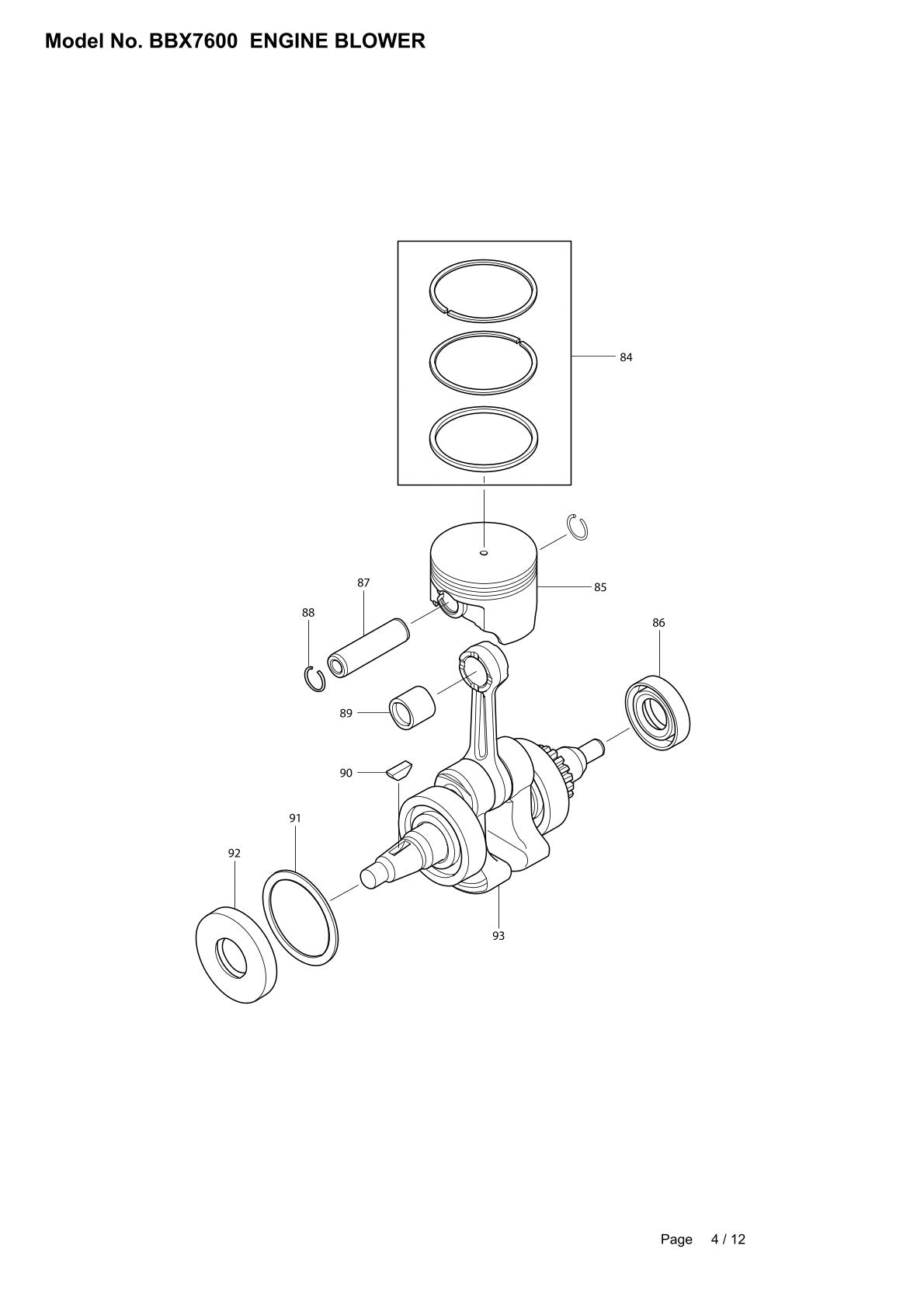

Position 084 Ref 5972003000 - PISTON RING SET €8,90

Position 085-2 Ref 318726-3 - PISTON €8,90

Position 086-1 Ref 213599-8 - OIL SEAL 17 €8,90

Position 086-2 Ref 213599-8 - OIL SEAL 17 €8,90

Position 087-1 Ref 5802500702 - PISTON PIN €8,90

Position 087-2 Ref 257344-1 - PISTON PIN €8,90

Position 088-1 Ref 233995-4 - RING SPRING 12 €8,90

Position 089 Ref 0610129940 - NEEDLE ROLLER BEARING €24,90

Position 090 Ref 0323049950 - WOODRUFF KEY €8,90

Position 091-1 Ref 267448-1 - FLAT WASHER 41 1 Model No. BBX7600 ENGINE BLOWER Page 4 / 7 Please order the parts with a part number. Print Date 04/06/2015 Item Parts No. Description I/C Qty N/O Opt. 1 Opt. 2 Note €14,90

Position 092-1 Ref 213598-0 - OIL SEAL(L) €8,90

Position 093-1 Ref 5972002002 - CRANKSHAFT COMPL €8,90

Position 093-2 Ref 142205-7 - CRANK SHAFT COMPLETE €8,90

Position 093-3 Ref 126576-0 - CRANK SHAFT ASSEMBLY €189,90

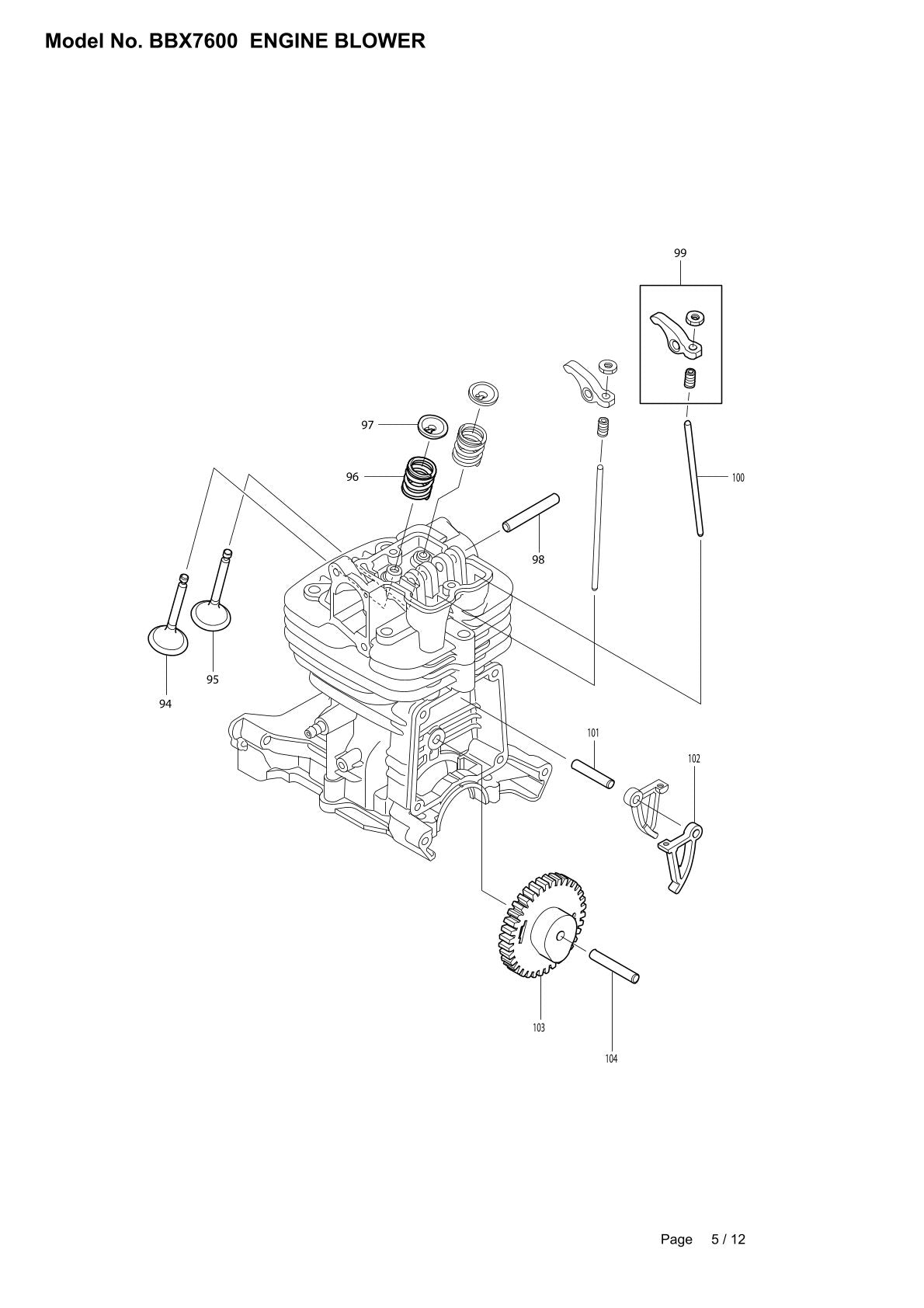

Position 094-1 Ref 331964-0 - INTAKE VALVE €39,90

Position 095-3 Ref 331965-8 - EXHAUST VALVE €39,90

Position 096-1 Ref 234212-5 - COMPRESSION SPRING 11 €10,90

Position 097-1 Ref 331966-6 - RETAINER €14,90

Position 098-1 Ref 5973500501 - SHAFT ROCKER ARM €10,90

Position 098-2 Ref 268310-3 - PIN 5 €8,90

Position 099-2 Ref 126005-3 - ROCKER ARM ASSEMBLY €39,90

Position 100-1 Ref 256526-2 - PUSH ROD €10,90

Position 101 Ref 5973500700 - SHAFT CAM LIFTER €8,90

Position 101-1 Ref 256186-0 - PIN 5 €10,90

Position 102-1 Ref 5973500601 - CAM LIFTER €8,90

Position 102-2 Ref 313266-6 - CAM LIFTER L €8,90

Position 103-1 Ref 5973002002 - CAMGEAR ASSY €8,90

Position C10 Ref 5973003002 - CAMGEAR COMPL €8,90

Position C20 Ref 5973501600 - SPRING €8,90

Position C30 Ref 5973501400 - FLY WEIGHT €8,90

Position C40 Ref 346434-6 - CAM GEAR PLATE €8,90

Position 104-1 Ref 256200-2 - PIN 5 €8,90

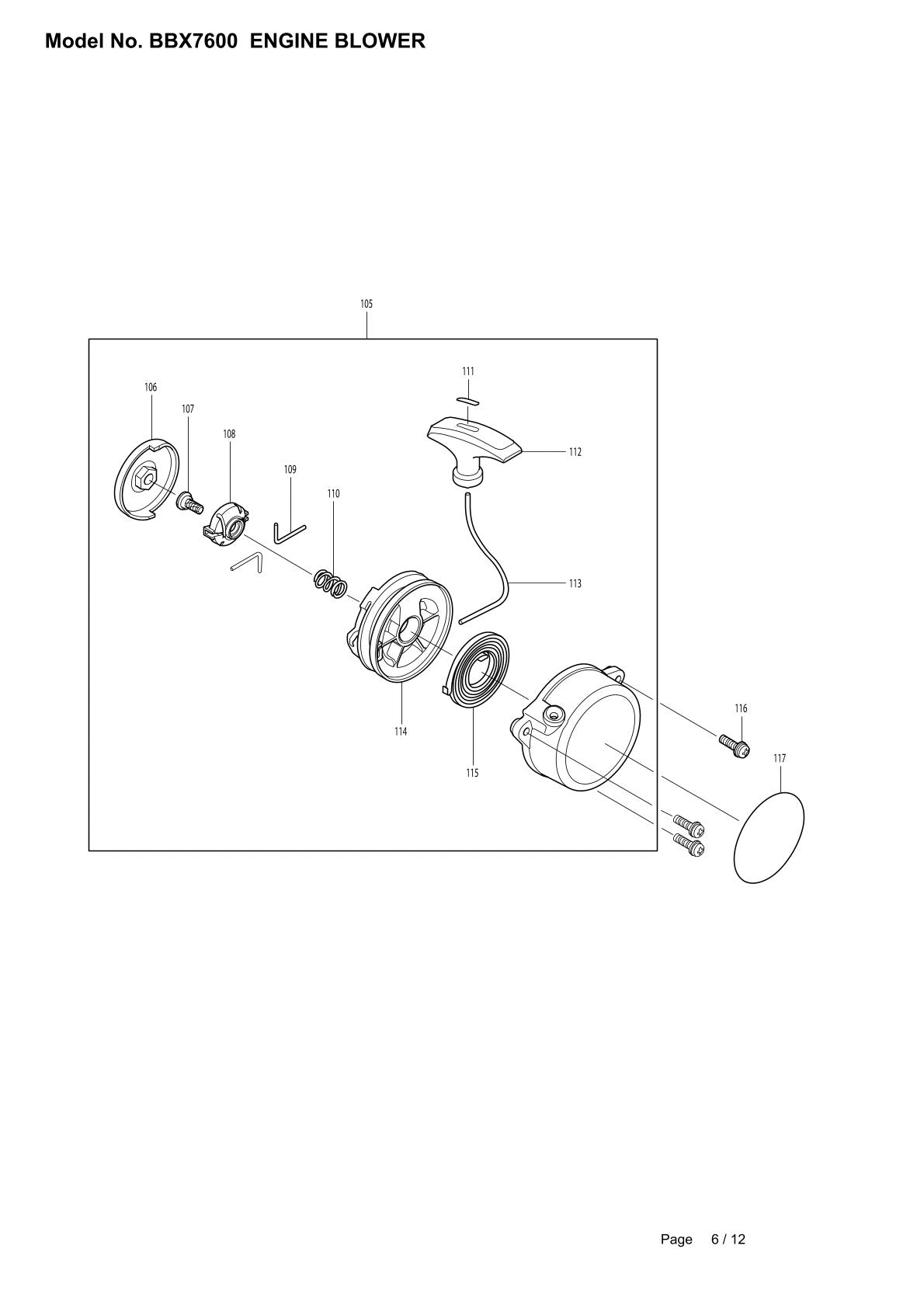

Position 105 Ref 5975001000 - STARTER REWIND €8,90

Position 106 Ref 5975500000 - PULLEY €8,90

Position 107-1 Ref 266585-8 - TAPPING SCREW 5X12 €8,90

Position 108-1 Ref 424516-5 - COLLAR €24,90

Position 109-1 Ref 326200-7 - SWING ARM €29,90

Position 110-1 Ref 234257-3 - FRICTION SPRING €24,90

Position 111-1 Ref 424360-0 - ROPE STOPPER €8,90

Position 112-1 Ref 424361-8 - STARTER KNOB €29,90

Position 113 Ref 5975002110 - STARTER ROPE €24,90

Position 113-1 Ref 444043-6 - STARTER ROPE €19,90

Position 114-1 Ref 441075-4 - REEL €8,90

Position 115-1 Ref 232262-4 - SPIRAL SPRING €8,90

Position 116-1 Ref 266788-4 - PAN HEAD SCREW M5X20 WITH WR €8,90

Position 117 Ref 6679500702 - MODEL LABEL €14,90

Position 117-1 Ref 6679500703 - MODEL LABEL €8,90

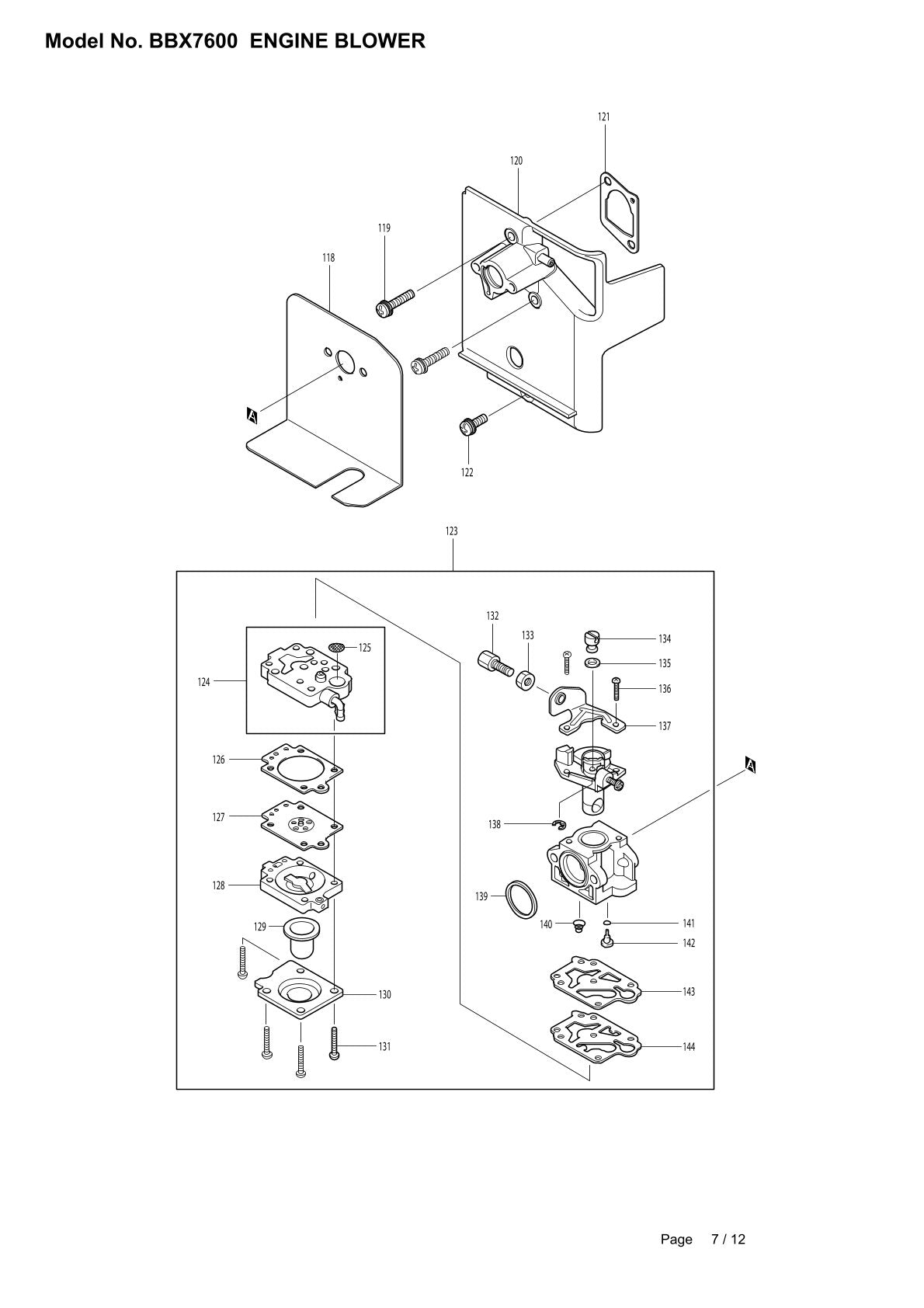

Position 118 Ref 5973501200 - CARBURETOR GASKET €19,90

Position 119-3 Ref 266749-4 - HEX. S.H.B. M5X25 WITH WR €14,90

Position 120 Ref 5973009001 - INSULATOR COMPL €8,90

Position 120-1 Ref 453858-0 - INSULATOR €39,90

Position 121-1 Ref 162333-2 - INSULATOR GASKET €14,90

Position 122-1 Ref 0119059490 - SOCKET HEAD BOLT M5X14 (W,SW) €8,90

Position 123 Ref 5976001000 - CARBURETOR €229,90

Position 124-1 Ref 5976001010 - PUMP BODY ASSY €99,90

Position 125-1 Ref 352010-6 - INLET SCREEN €8,90

Position 126-1 Ref 442154-1 - METERING DIAPHRAGM GASKET €34,90

Position 127-1 Ref 168574-8 - METERING DIAPHRAGM €8,90

Position 128-1 Ref 140438-8 - AIR PURGE BODY €79,90

Position 129-1 Ref 424314-7 - PRIMER PUMP €39,90

Position 130-1 Ref 346270-0 - PRIMER PUMP COVER €34,90

Position 131-1 Ref 266582-4 - TAPPING SCREW 3X24 €19,90

Position 132-1 Ref 266795-7 - ADJUST SCREW €14,90

Position 133-1 Ref 264065-8 - CABLE ADJUST NUT M6 €8,90

Position 134-1 Ref 325922-6 - SWIVEL €39,90

Position 135-1 Ref 413140-9 - WASHER €8,90

Position 136-1 Ref 266704-6 - PAN HEAD SCREW M3X10 €14,90

Position 137-1 Ref 346491-4 - BRACKET CABLE €8,90

Position 138-1 Ref 257964-1 - STOP RING E-3 €34,90

Position 139-1 Ref 424444-4 - PACKING RING €34,90

Position 140-1 Ref 234183-6 - CONICAL COMPRESSION SPRING 5-9 €29,90

Position 141-1 Ref 213538-8 - O RING 2 €29,90

Position 142 Ref 5976001020 - JET \#60 €8,90

Position 142-1 Ref WJ00112478 - MAIN JET €44,90

Position 143-1 Ref 442155-9 - PUMP GASKET €34,90

Position 144-1 Ref 168575-6 - PUMP DIAPHRAGM €8,90

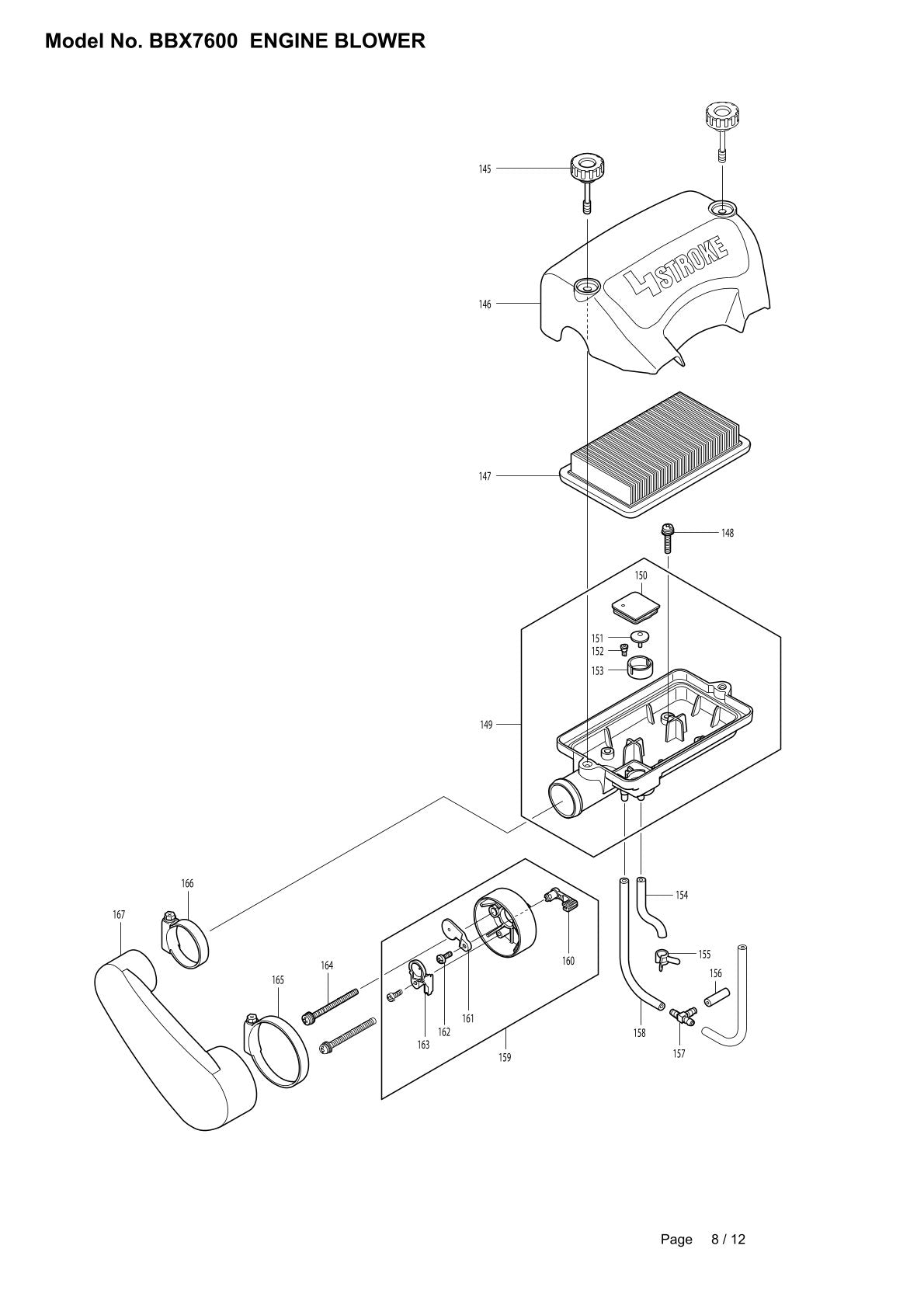

Position 145 Ref 6676501200 - KNOB BOLT M5X45 €54,90

Position 146-1 Ref 6676002002 - AIR CLEANER COVER €54,90

Position 147-1 Ref 6676500201 - AIR CLEANER ELEMENT €59,90

Position 148-1 Ref 266494-1 - + PAN HEAD SCREW M5X16 €8,90

Position 149-2 Ref 6676003002 - AIR CLEANER CASE ASSY €8,90

Position 149-3 Ref 126377-6 - AIR CLEANER CASE ASSEMBLY €219,90

Position 150-1 Ref 6676501300 - SEPARATOR PLATE €8,90

Position 150-2 Ref 162358-6 - SEPARATOR PLATE €129,90

Position 151-1 Ref 424315-5 - CHECK VALVE €10,90

Position 152-1 Ref 424316-3 - CHECK VALVE €19,90

Position 153-1 Ref 6676500500 - CHECK VALVE PLATE €8,90

Position 153-2 Ref 454834-7 - CHECK VALVE PLATE €59,90

Position 154-2 Ref 412129-4 - TUBE 3-105 €14,90

Position 155-2 Ref 282027-4 - HOSE CLAMP 6 €10,90

Position 156-1 Ref 422096-5 - TUBE 3-25 €8,90

Position 157-1 Ref 452952-5 - HOSE JOINT €44,90

Position 158-1 Ref 0851199960 - TUBE 3-190 €8,90

Position 159 Ref 5973006000 - INTAKE CASE ASSY €8,90

Position 160 Ref 5973501800 - CHOKE LEVER €8,90

Position 161 Ref 5973501700 - CHOKE PLATE €10,90

Position 162 Ref 5973006010 - TAPPING SCREW 4X12 €10,90

Position 163 Ref 5973501900 - INTAKE PLATE €14,90

Position 164 Ref 0043605650 - SCREW ASS'Y M5X65 €8,90

Position 164-1 Ref 911288-6 - PAN HEAD SCREW M5X65 O 2 Model No. BBX7600 ENGINE BLOWER Page 6 / 7 Please order the parts with a part number. Print Date 04/06/2015 Item Parts No. Description I/C Qty N/O Opt. 1 Opt. 2 Note €8,90

Position 165 Ref 0561679990 - HOSE CLAMP €8,90

Position 166 Ref 0561439990 - HOSE CLAMP €19,90

Position 167-1 Ref 6676500400 - AIR CLEANER DUCT €49,90

Position 168 Ref 5973501301 - MUFFLER GASKET €8,90

Position 168-1 Ref 5973501302 - MUFFLER GASKET €8,90

Position 168-2 Ref 346682-7 - MUFFLER GASKET €44,90

Position 169-2 Ref 5973001003 - MUFFLER EXHAUST €8,90

Position 171-1 Ref 266771-1 - SOCKET HEAD BOLT M6X18 €14,90

Position 172-1 Ref 424105-6 - PLUG CAP €19,90

Position 173-1 Ref 324891-8 - PLUG CAP SPRING €10,90

Position 174 Ref 0119049970 - SOCKET HEAD BOLT M4X20 €8,90

Position 175-1 Ref 638784-6 - WIRE €8,90

Position 176-1 Ref 638710-5 - LEAD WIRE €8,90

Position 177 Ref 5977001010 - IGNITION COIL €8,90

Position 178 Ref 5977001020 - FLYWHEEL COMPL €119,90

Position 179-1 Ref 264054-3 - FLANGE NUT M10 €10,90

Position 180 Ref 6679002000 - SWIVEL PIPE COMPL €8,90

Position 180-1 Ref 168746-5 - SWIVEL PIPE COMPLETE €8,90

Position 181 Ref 0561769990 - HOSE CLAMP €8,90

Position 182 Ref 6679500000 - FLEXIBLE PIPE €8,90

Position 182-1 Ref 412115-5 - FLEXIBLE PIPE €8,90

Position 183 Ref 0561009990 - HOSE CLAMP €19,90

Position 184 Ref 6679501801 - STRAIGHT PIPE €8,90

Position 184-1 Ref 455633-0 - STRAIGHT PIPE 450 €8,90

Position 185 Ref 6679501900 - END PIPE €8,90

Position 185-1 Ref 455632-2 - END PIPE 450 €8,90

Position 186 Ref 6679001000 - BAND COMPL €39,90

Position 187 Ref 5973502300 - CAM LIFTER €8,90

Position 187-1 Ref 313267-4 - CAM LIFTER R €8,90

Aucune pièce ne correspond à cette recherche.

Expédition 24h

Commande avant 15h

Garantie 2 ans

Pièce d'origine

Doute sur la pièce ?

On l'identifie pour vous

Description

Votre aspiro-souffleur thermique Makita BBX7600 mérite une remise en état plutôt qu’un remplacement pur et simple. Cette page regroupe l’ensemble des pièces détachées référencées au plan du constructeur pour cette machine, du plus petit joint aux sous-ensembles complets.

Comment choisir la bonne pièce

Ouvrez la vue éclatée publiée sur cette fiche et repérez l’élément à changer sur le schéma. Chaque composant y porte un numéro de position. Relevez ensuite la référence constructeur associée à ce numéro, puis sélectionnez-la dans la liste des variantes. Vous êtes ainsi certain de commander la pièce exactement prévue pour le BBX7600, sans risque de confusion avec un modèle voisin.

Caractéristiques

Information non renseignée pour cette référence.

Compatibilité

Information non renseignée pour cette référence.

Pièces détachées aspiro-souffleur thermique Makita BBX7600

Description

Comment choisir la bonne pièce

Caractéristiques

Compatibilité

Expédition 24h

Paiement sécurisé

Conseil technique

Compte pro B2B

Catalogue

Services

Contact

Votre panier
